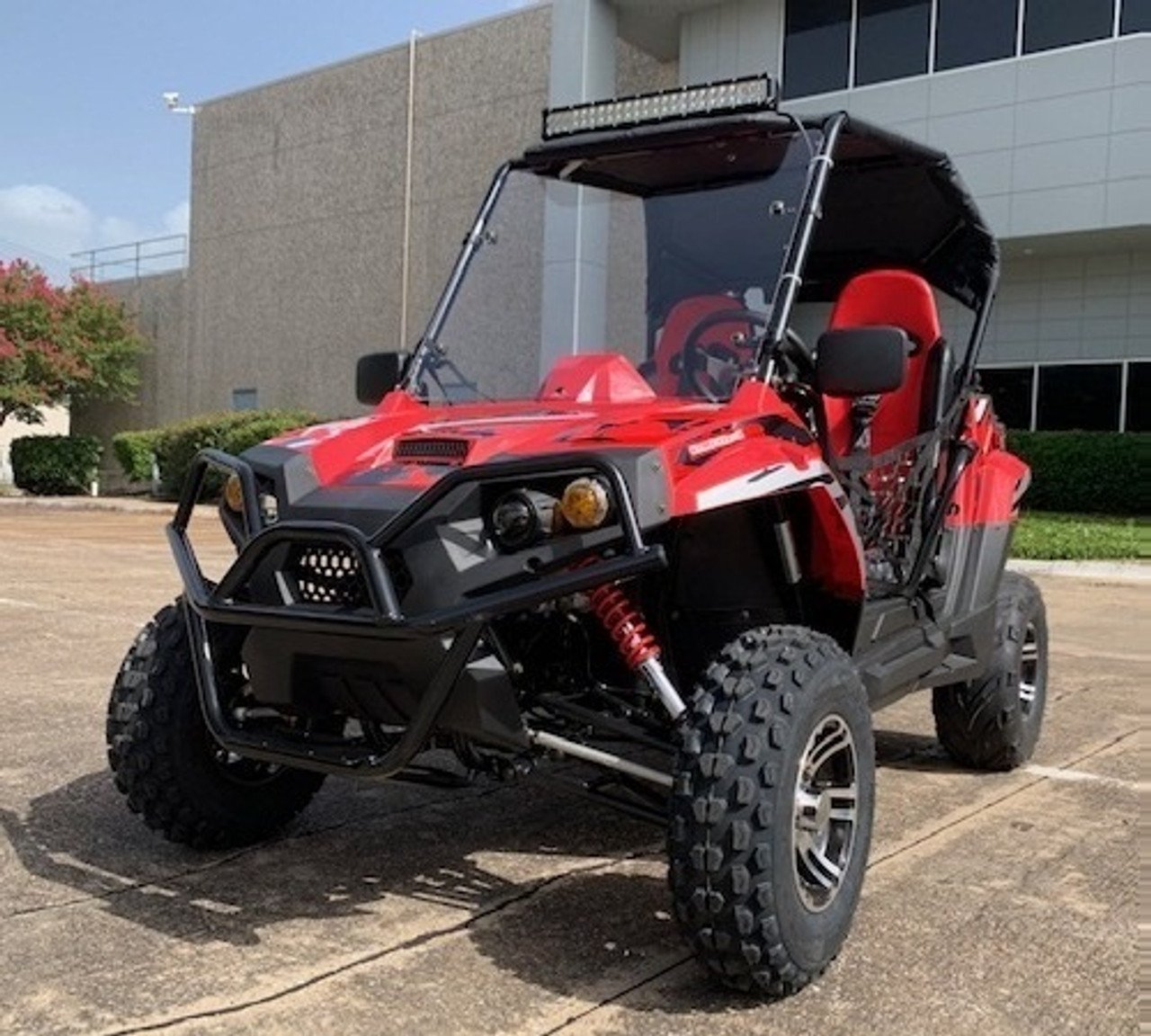

Trailmaster Challenger 200EX EFI UTV, Fully automatic with reverse, Aluminum wheels, Adjustable steering wheel

Trailmaster Challenger 200EX EFI UTV, Fully automatic with reverse, Aluminum wheels, Adjustable steering wheel
Elevate your off-road adventures with the TrailMaster Challenger 200EX (EFI), an upgraded version of our popular Challenger 150X. This model features a powerful 169cc GY6 engine with Electronic Fuel Injection (EFI), ensuring effortless starts in cold weather and high altitudes, and eliminating the need for carburetor maintenance after periods of inactivity.
Designed to tackle tough terrain with ease, the Challenger 200EX boasts a front independent A-arm with shock absorber and a rear swing arm, providing superior suspension and comfort. The deluxe edition is equipped with premium features including alloy wheels, an LED light bar, a windshield, eye-catching graphics, and a robust front steel bumper.
Available in striking colors: red, blue, black, and white.
Key features:
EFI System: Operates flawlessly in any weather and at any altitude.
Powerful Engine: Fully automatic with reverse, high-performance 11.1 HP 168.9cc GY6 engine with internal F-N-R.
Enhanced Torque: New gear ratio setup for maximum low-end torque.
Durable Wheels: Aluminum wheels.
Protection and Visibility: Windshield and front steel bumper.
Illumination: Top LED light bar.
Convenience: Side rearview mirrors and 12V outlet.
Aesthetics: Exciting graphics.
Tires: Large 22X7-10 front and 22X10-10 rear tires.
Instrumentation: Speedometer and odometer.
Sun Protection: Bikini sunshade top.
Safety Features: Turn signals, horn, and four-point safety seatbelt.
Utility: Trailer hitch and large rear utility rack.
Performance: Top speed of 38 MPH.
Comfort and Adjustment: Adjustable steering wheel, individual sporting seats, adjustable driver seat (pedal to seat back from 38” to 43”), and adjustable heavy-duty front and rear shock absorbers.
Steering and Braking: Rack and pinion steering wheel, front and rear hydraulic disc brakes, and parking brake.
Capacity: Large driving cabin accommodates individuals up to 6’2”.
Electric Start: Includes kill switch.
Age Group: Suitable for ages 16 and older.
Optional Accessory: Winch.

Technical Specifications
Engine Information
EPA Certificated: Yes
Engine Type: 4-stroke, single cylinder, air cooled
EFI: Electronic Fuel Injection
Displacement: 168.9 cc
Max HP: 11.1 hp / 8000 rpm
Max Torque: 8.1 lb-ft / 6000 rpm
Bore x Stroke: 2.4 x 2.28 inches
Max Speed: 35 mph
Climbing Ability: 20-25 degrees
Ignition: ECU
Starting System: Electric
Battery: 12V 10Ah
Engine Oil: SAE 15W-40
General Information
Clutch: Automatic CTV with reverse
Driveline / Driving Wheel: Chain / Dual wheel drive
Suspension F: Independent Dual A-arm
Rear Suspension: Swingarm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 22×7-10 / 22×10-10
Fuel Capacity: 1.75 gal
Weight, G.W. / N.W.: 750 lbs / 578 lbs (340 kg / 262 kg)
Max Load: 500 lbs
Dimension Information
Wheelbase: 72 inches
Length x Width x Height: 98 x 48 x 60 inches / 2489 x 1219 x 1524 mm
Crate Size: 90 x 54 x 33 inches
Height to Seat: 21 inches
Min Ground Clearance: 6.3 inches
