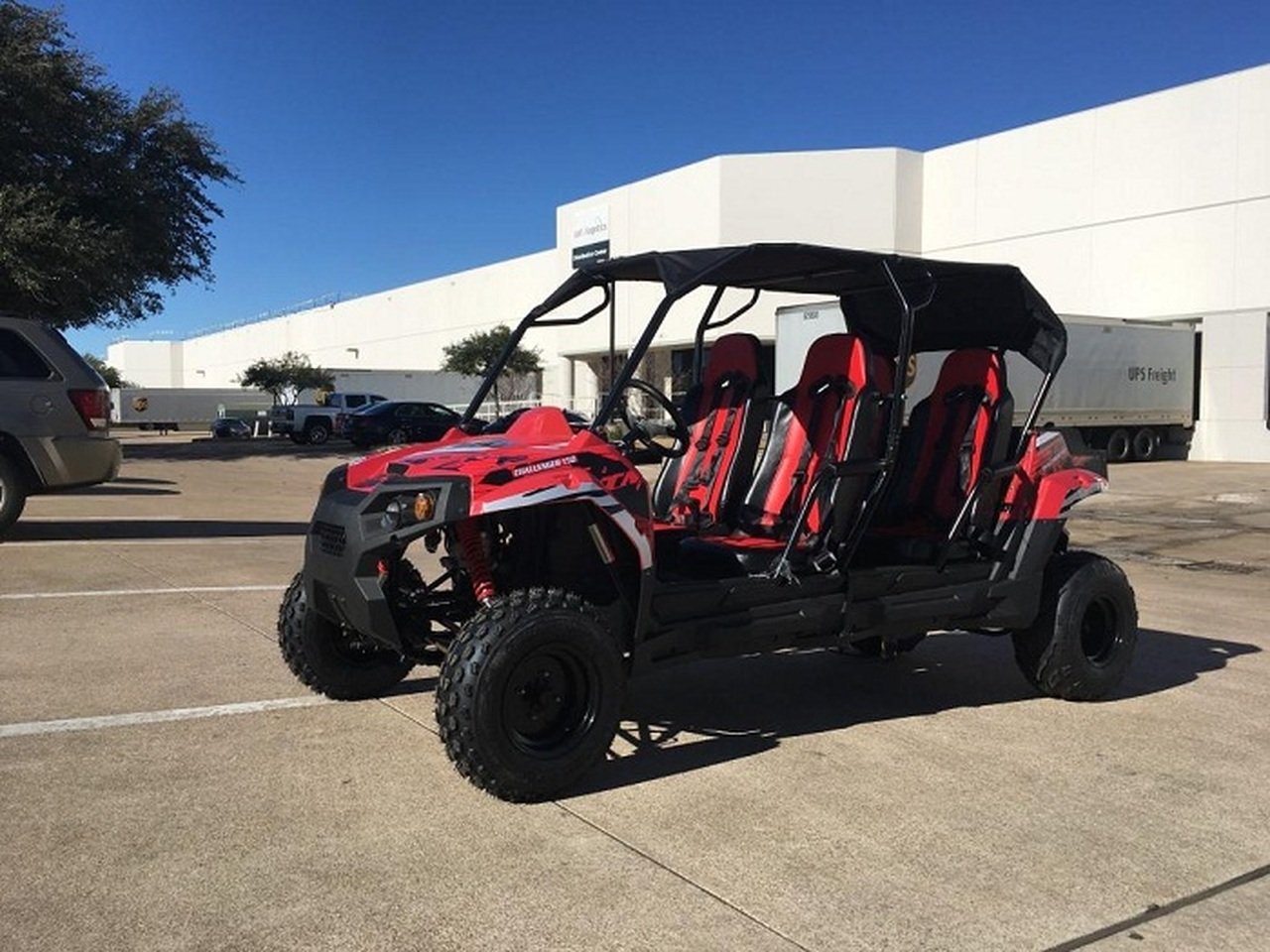

TrailMaster Challenger4 200 4-stroke, Single Cylinder, Air Cooled Four Seater UTV

Trailmaster Challenger4 200 4-stroke, Single Cylinder, Air Cooled Four Seater UTV
Designed for family fun and rugged durability, the Challenger4 200 is perfect for taking the crew or kids on thrilling rides. With its adjustable steering column, reverse gear, and a full upper brush guard with a sunshade canopy, you’ll be ready for all-day adventures. It features four comfortable dual seats with seat belts for added safety.
Powered by a robust 168cc GY6 electric start 4-stroke engine, this UTV boasts an automatic CVT transmission and chain-driven dual rear-wheel drive. The 4-wheel hydraulic assist disc brakes provide extra stopping power, while the full suspension system and all-terrain tires ensure you can conquer the toughest trails. CARB approved and available in a variety of attractive colors!
The Challenger4 200 offers ample space for four full-sized adults with a generous load capacity of 800 lbs. The large driving cabin accommodates drivers up to 6’2″, with an adjustable seat that can be set between 38″ and 43″ from the pedal.
Despite its 200cc engine, it achieves a top speed of nearly 25 mph. The new 10-teeth sprocket gear ratio enhances its power, making it feel like much more than just a 200cc UTV.
Choose from sleek colors including red, blue, black, and white!
Key Features:
Wheelbase: 72 inches
Dimensions (Length x Width x Height): 98 x 48 x 60 inches (2489 x 1219 x 1524 mm)
Height to Seat: 21 inches
Minimum Ground Clearance: 6.3 inches
CARB Approved
Configurations and Specifications Subject to Change

Technical Specifications
Engine Information
EPA / CARB Approved: Yes
Engine Type: 4-stroke, single cylinder, air cooled
Displacement: 168.9cc
Max HP: 11.1hp / 8000rpm
Max Torque: 8.1 lb ft / 6000rpm
Bore x Stroke: 2.26 x 2.28 inches
Max Speed: 24.9 mph
Brake Track: 12 degrees
Ignition: C.D.I
Starting System: Electric
Battery: 12V 10Ah
Carburetor Brand: Deli (Vacuum film)
Engine Oil: SAE 15W-40
General Information
Clutch: Automatic CVT with reverse
Driveline / Driving Wheel: Chain / Dual wheel drive
Suspension F / R: Independent Dual A-arm / Double Oil Damped Shock
Brakes F / R: Both hydraulic brakes, Disc
Tires F / R: 22×7-10 / 22×10-10
Fuel Capacity: 1.75 gal
Weight, G.W. / N.W.: 860 lbs / 726 lbs – 390 kg / 329 kg
Max Load: 800 lbs
Dimension Information
Wheelbase: 101.6 inches
Overall Length x Width x Height: 132 x 50 x 63 inches / 3352 x 1270 x 1600 mm
Height to Seat: 21 inches
Min Ground Clearance: 6.3 inches
Crate Dimension: 118 x 53 x 35 inches
