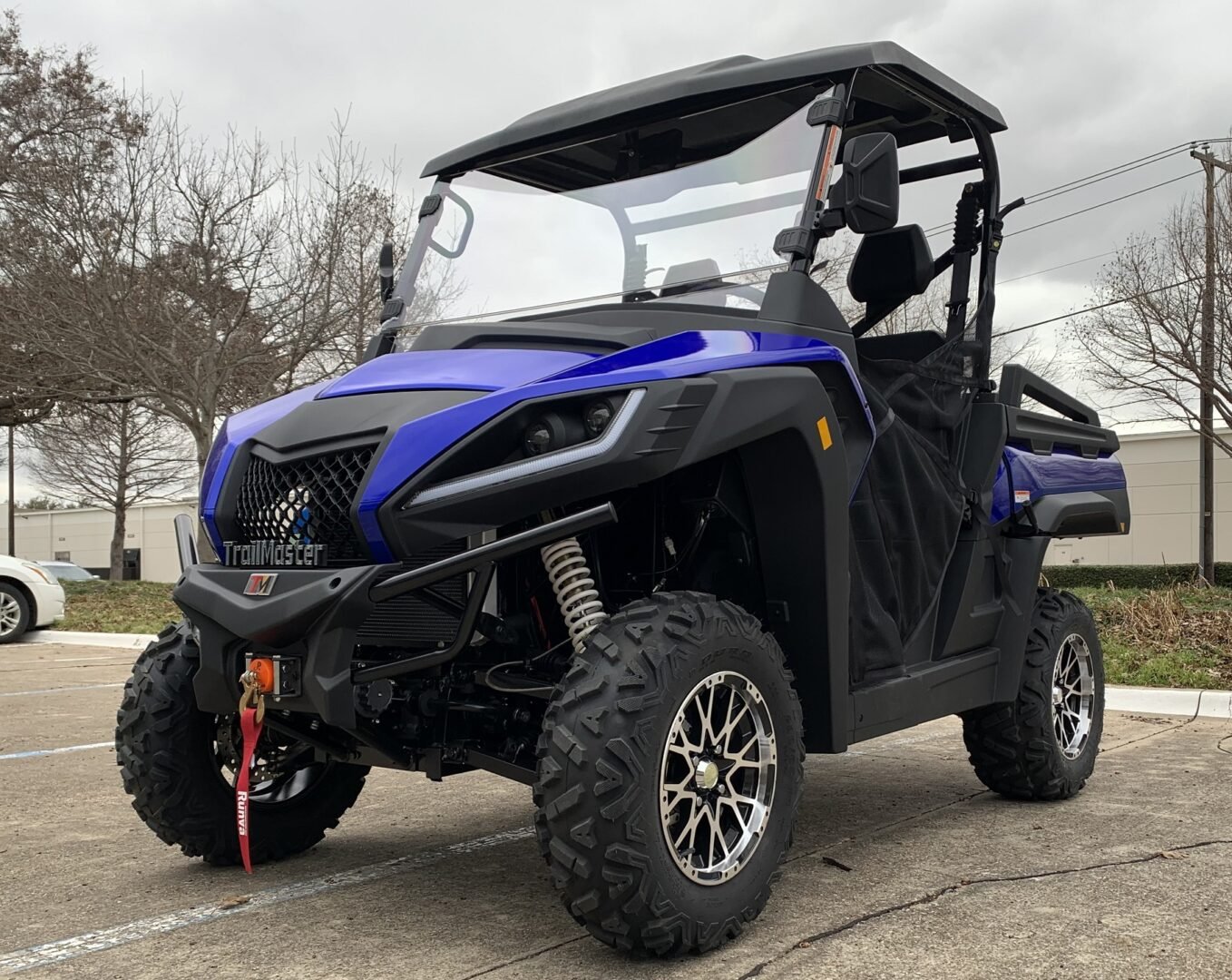

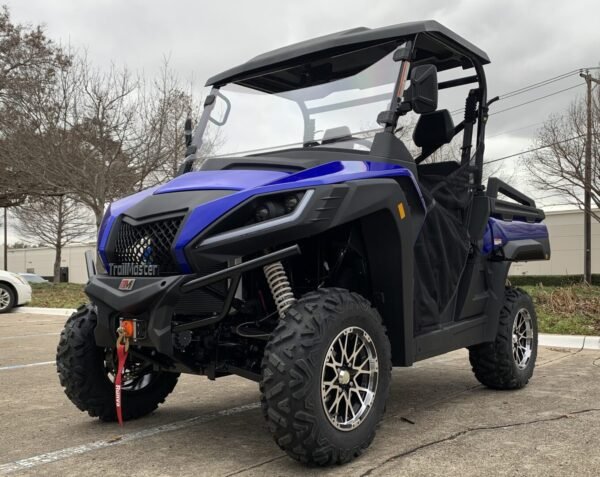

TrailMaster Panther 550 EFI UTV, Automatic Transmission, Heavy-Duty Suspension, Locking Differential & Digital Speedometer

TrailMaster Panther 550 EFI UTV, Automatic Transmission, Heavy-Duty Suspension, Locking Differential & Digital Speedometer
Unleash your off-road adventures with the TrailMaster Panther 550cc UTV, a powerhouse designed for performance and durability. Equipped with a high-performance 498.6cc liquid-cooled engine delivering 34 HP and a maximum power of 24 kW, this UTV ensures robust power and reliability in any terrain.
The Panther 550cc features a rugged 4-wheel drive system with front and rear differentials, complete with lock capabilities for exceptional traction and control. A 3000 lb winch adds versatility, making it perfect for tough tasks and challenging trails.
Designed with a focus on comfort and adaptability, this UTV includes adjustable heavy-duty front and rear shock absorbers for a smooth ride over rough terrain. The flip cup holder adds convenience for your drinks on the go. With a crankshaft speed of 6300 rpm and a maximum power of 24 kW, the Panther 550cc delivers impressive performance.
This model comes in red, blue, green and Camo colors.
Key features:
Hard top
3000lb-winch
Windshield
Side Nets
Four Wheel Drive, Front and Rear differential with lock
Liquid cooled high performance 498.6 cc  34 HP engine, with max power 24Kw
Equipped with H/L gear, can climb up to 30 degree slopes with ease with full capacity
Bench seat can fit up to 3 persons
Flip cup holder
Large storage space under seat
Four-wheel independent suspension for much better driving experience
EFI
Digital speedometer/odometer
LED Hi/Lo beam head light
Rear view center and side mirrors
Sporting steering wheel
Turn signals
Safety harness seatbelt
Big off-road tires: F / R: 26 x9-14 / 26 x 11-14
Polished aluminum wheels
Front bumper
Adjustable heavy duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Large gas tank
12v power outlet
Horn

Technical Specifications
Engine Information
EPA Certification: Yes
Engine Type: 4-stroke, Single Cylinder, Liquid Cooled
Displacement: 498.6cc
Compression Ratio: 10.2:1
Max HP: 34 HP
Bore & Stroke: 92 mm & 75 mm
Max Power and Crankshaft Speed: 24/6300 kW/r/min
Max Speed: 50 mph
Climbing Ability: 30 degrees
Ignition: ECU
Fuel System: EFI
Starting System: Electric
Battery: 12V 30Ah
Engine Oil: SAE 15W/40
General Information
Transmission: Automatic, L-H-N-R, with Locking Differential
Drive Train: Shaft Drive; 2WD-4WD
Drive Mode: Four Wheel Drive, Front and Rear Differential with Lock
Suspension, Front / Rear: Front MacPherson, Rear Dual A-ARM
Brakes, Front / Rear: Both Hydraulic Brakes, Disc
Tires, Front / Rear: 26 x 9-14 / 26 x 11-14
Fuel Tank Capacity: 7.93 gallons
Wheels: Aluminum
Weight, N.W.: 1386 lbs (628 kg)
Max Load: 1000 lbs
Dump Bed Capacity: 550 lbs
Towing Capacity: 820 lbs
Dimension Information
Wheelbase: 74 in
Length x Width x Height: 120.6 x 63.7 x 80.7 in (3063 x 1617 x 2049 mm)
Seat Height: 18.9 in (From Floor Board to Seat)
Min Ground Clearance: 11.4 in
Dump Bed Size: 48 x 36.4 x 11.8 in
