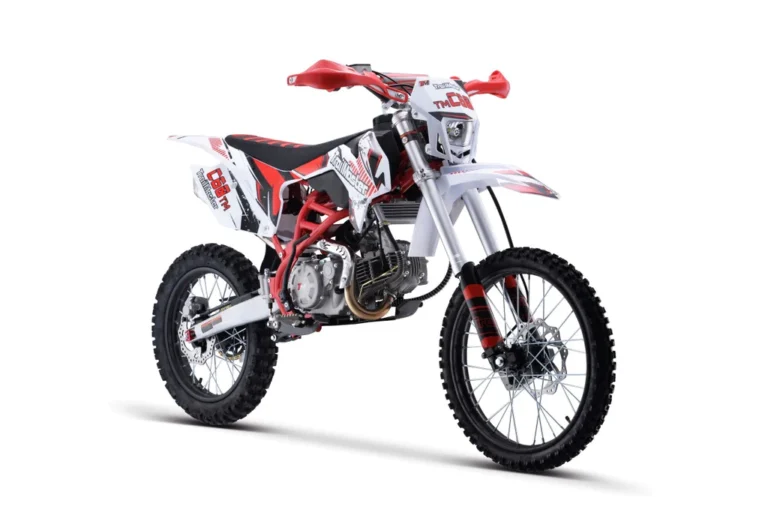

Trailmaster TM C60 160cc Off-Road Dirt Bike, 4-Speed Manual, 34″ Seat Height, Kick Start

Trailmaster TM C60 160cc Off-Road Dirt Bike, 4-Speed Manual, 34″ Seat Height, Kick Start
Elevate your off-road experience with the Trailmaster TM C60, a powerful 160cc dirt bike designed for rugged terrain and thrilling adventures. With a seat height of 34 inches, it offers a commanding riding position and comfortable fit for a variety of riders.
Powered by a ZM single-cylinder, 4-stroke engine with oil cooling, the TM C60 provides dependable performance and efficient cooling. The bike features a 4-speed manual transmission, allowing you to seamlessly shift gears and tackle diverse riding conditions with precision. For reliable engine ignition, the TM C60 comes equipped with a kick start.
Built on a durable twin girders steel tube frame, the TM C60 ensures stability and resilience on tough trails. It also includes alloy bracket handguards and foldable brake and clutch levers, adding both protection and convenience during your rides.
Features
Powerful 4 stroke ZhongShen oil cooled 156ml, 14.3 HP engine
Kick start,  4 gear manual clutch
53.3“ wheel base and 34.6” seat high
780mm Inverted Hydraulic Forks, 150mm Travel
410mm Spring Pre-load None-Adjustable Shock
Front tire 19”/Rear Tire 16”
LED Headlight
Foldable Clutch & Brake Lever
Alloy Bracket Handguard
TrailMaster Ribbed Seat

Technical Specifications
Engine System
Engine Type: ZM-Single Cylinder, 4-Stroke, Oil Cooling
Displacement: 156 ml
Max Power: 10.5 kW / 8500 rpm (±5%)
Max Torque: 11.5 N·m / 5500 rpm (±5%)
Compression Ratio: 11.5:1
Bore and Stroke: 60 x 55 mm
Shift Type: N-1-2-3-4, Four-Gear Manual Shift
Start Type: Kick Start
Ignition: CDI
Min. Fuel Consumption: ≤367 g/kW·h
Engine Oil #: SJ-5W/40
Transmission: Chain Drive; #428 & 120L Chain, 14/41T
Size Data
Overall Size: 78.7″ x 28.9″ x 44.5″ (2000 x 735 x 1130 mm)
Wheel Base: 53.3″ (1355 mm)
Seat Height: 34.6″ (880 mm)
Ground Clearance: 13.4″ (340 mm)
Fuel Capacity: 7.5 L / 2 Gal.
Tires: Front: 70/100-19, Rear: 90/100-16 Knobby Tires
Wheels: Steel 1.6 x 19″ / 1.85 x 16″ Rims, Cast Hubs
Frame/Suspension/Brake System/More Features
Frame: Twin Girders Steel Tube Frame
Front Fork: Inverted 45 x 48 x 780 mm Forks, Non-Adjustable
Rear Shock: 10 mm x 410 mm, Spring Pre-load
Swing-Arm: Steel Tube, 14 inch
Handle Bar: Steel Crossbar, L=720 mm; Dia=22 mm
Front Brake: Hydraulic Twin Piston Caliper, 220 mm Disc
Rear Brake: Hydraulic Single Piston Caliper, 190 mm Disc
Exhaust: Steel Pipe with Catalyst Converter (EPA Standard)
Brake & Clutch Lever: Foldable & Handguard
Seat: Ribbed TrailMaster Seat
Headlight: LED
Packing and Loading
Packing Size: 66″ x 16.3″ x 31.3″ (1680 x 415 x 795 mm)
Net Weight: 190 lbs (86 kg)
Gross Weight: 227 lbs (103 kg)
