Fast peak torque output and good acceleration performance without frustration even in the climbing. The throttle response quickly, which makes the rider enjoy the speed and freedom better. The new battery module design and BMS keep the battery charging and discharging stable even in extreme environments. It is convenient to bring home or office to recharge with removable feature design.
With a simple press of a button, you activate the pinnacle of convenience and safety. Whether it’s a quick pit stop or extended parking, our TriHauler parking system guarantees a seamless experience. The brake locking on both the front and rear wheels enhances overall stability, facilitating smooth mounting, dismounting, and cargo handling, ensuring a secure parking in diverse situations, even on inclines or uneven terrain.

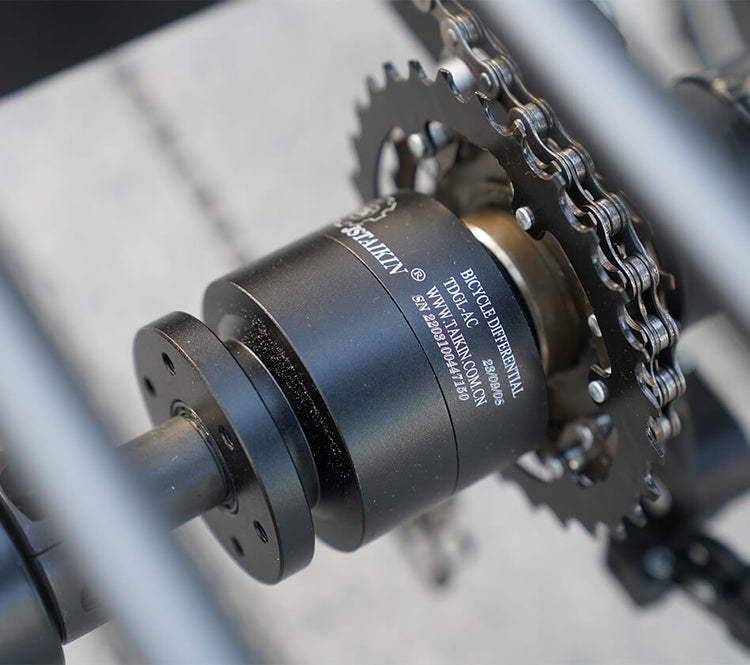

The TriHauler’s differential allows the two rear wheels to have different rotation speeds, ensuring better balance for the tricycle. This feature enhances handling during high-speed maneuvers or turns, minimizing the risk of tipping over or losing control. This ensures a safe and enjoyable riding experience.
| Battery | UL-certified 48V 20Ah (960Wh) LG cells. | Brake calipers | GEMMA Hydraulic brakes |

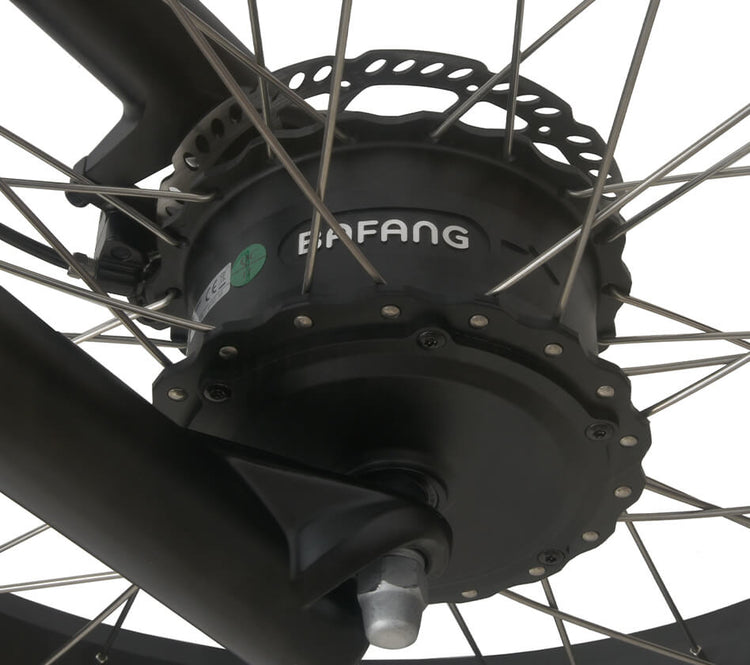

| Motor | 48V 750W Bafang Front hub motor(TriHauler)/ 48V 1000W Bafang Rear drive motor(TriHauler Pro) | Chain | KMC C7NP |
| Throttle | Thumb throttle | Fenders | Black aluminum fenders |
| USB ports | 5V | Fork | Aluminum Alloy Integrated suspension front fork |
| Hightlight | 45LUX | Frame | 6061 aluminum alloy |
| Tail Light | Integrated light | Freewheel | Shimano 6-speed freewheel 14-34T |
| Spokes | 12-gauge stainless steel | Handlebars | Custom formed aluminum |
| Charger | 48V 3A | Kickstand | Single-leg aluminum alloy |
| Pedal Assist | Intelligent 5 level pedal assists | Pedals | VP aluminum alloy mountain type |
| Recommended Rider Height | Above 5′ | Rims | Alloy, Star Circle, 36H |
| Total Payload Capacity | 480 lbs | Saddle | Leather comfort seat |
| N.W. | 95.5 lbs(TriHauler)/ 109.3 lbs(TriHauler pro) | Seat post | Promax ∮27.2*350MM |
| Tires | Front 24*4.0″, rear 20*4.0″ Kenda all-terrain Tires with reflective patches and puncture-proof | Suspension | Front fork suspension |

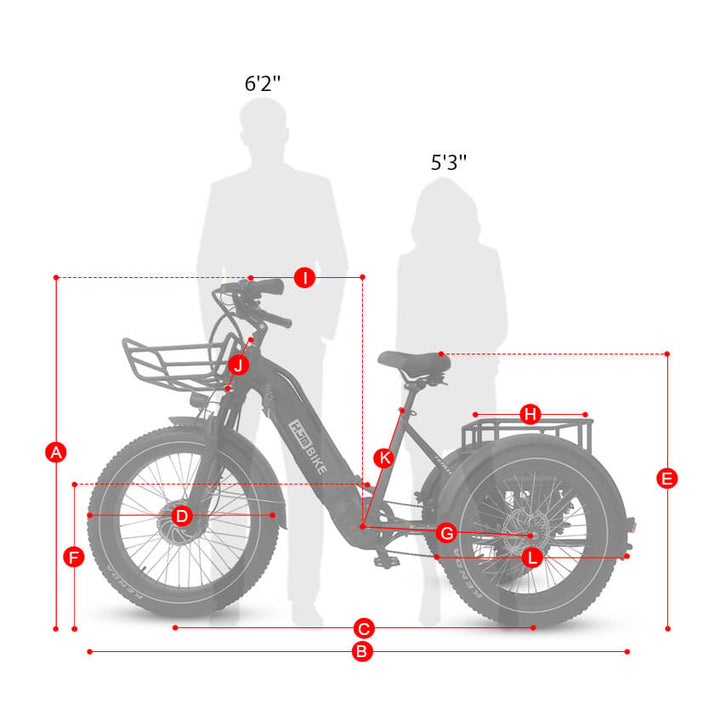

| A | Handlebar Height 44.9″ |
| B | Total Length 73.6″(TriHauler)/ 76.8″(TriHauler pro) |
| C | Wheelbase 44.5″ |
| D | Wheel Size 24″ x 4.0″ |
| E | Seat Height 33.6″-41.4″ |
| F | Stand Over Height 16.9″ |
| G | Chain Stay Length 19.7″ |
| H | Rear Rack 15.3″ |
| I | Handlebar Reach 17.3″ |
| J | Head Tube 6.5″ |
| K | Seat Tube Length 17.3″ |
| L | Wheel Size 20″ x 4.0″ |
| Width | Tricycle Width 30.4″(TriHauler)/ 31.3″(TriHauler pro) |
| Rear basket size (inner) | 17.2″ x 14.2″ x 7.9″ |
| Front basket size | 14.9″ x 14.2″ x 6.2″ |
| PEDAL-ASSIST | |||||
|---|---|---|---|---|---|
|
PAS
|
1 | 2 | 3 | 4 | 5 |
|
Single Battery(20Ah) Range
|
141 Miles | 87 Miles | 70 Miles | 47 Miles | 31 Miles |
|
Dual Battery(20Ah+17.5Ah) Range
|
264 Miles | 162 Miles | 132 Miles | 88 Miles | 59 Miles |
| THROTTLE ONLY | ||||||
|---|---|---|---|---|---|---|
|
Single Battery(20Ah) Range
|
30 Miles | empty | empty | empty | empty | empty |
|
Dual Battery(20Ah+17.5Ah) Range
|
57 Miles | empty | empty | empty | empty | empty |
*The above data is calculated based on a load of 165lbs, zero wind resistance, and a temperature of 25°C, with no uphill conditions.
